SHEAR SPRAY

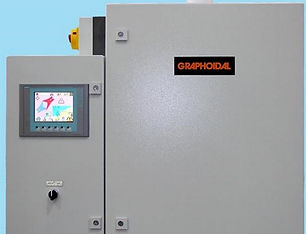

Shear spray system - Individual feeder dosing

Providing a cost-effective alternative to centralised systems, our revolutionary shear spray system is rated to operate on a single production line with features to ensure a reduction in oil and water consumption, and give a more reliable gob sharing operation.

One or more of these units can be linked to other Graphoidal modules to control bacteria, acidity, pressure and temperature to meet individual water preparation and distribution requirements.

Shear Spray systems are available in oil and water or oil and air formats.

Click on the image above to view in full size

MULTI SHEAR SPRAY UNIT

The Graphoidal Multi-SSU Shear Spray System provides a cost effective alternative to centralized systems. Rated to operate on multiple production lines, it provides oil savings and a reliable gob shearing operation, with precise, automatic on-line digital ratio control, up to 2,000:1.

It can be linked to other Graphoidal modules to control bacteria, acidity, pressure and temperature, to provide water preparation and distribution to meet individual requirements.

Multi-SSU Shear Spray systems are available in oil and water or oil and air formats.

Click on the image above to view in full size

SHEAR SPRAY BARS

Shear spray application is a small but critical part of the glass forming process. By controlling the pressure and flow of the air and the lubricating emulsion, Graphoidal Shear Spray bars create a fine atomized mist, which wets the shear blades very effectively and provides the most efficient method of blade cooling.

A wide range of Spray bars and mounting assemblies is available to suit all types of applications, including custom made configurations.

Click on the image above to view in full size

SCOOP SPRAY

The revolutionary Graphoidal Scoop Spray Plates mean that 100% of the lubricant is sprayed directly into the gob distributor providing optimum lubrication and cooling of the scoops with no waste.

Mounted directly over the gob distribution. These simple, efficient devices are available in a range of versions to suit every application

Click on the image above to view in full size

FIXED DROP QUIDE

Fixed drop guide assembly with integral spray bar mounting system.



-Enables shear spray bars to be positioned close to the shear blades.



-Simple adjustment.



-Gob stability through fixed drop guide



-Water cooled drop guides

Click on the image above to view in full size

WATER PREPERATION EQUIPMENT

Graphoidal offers a comprehensive range of water preparation equipment including reverse osmosis units, booster pumps, water junction boxes, ultra violet light modules, multiple outlet manifolds, automatic lubricant fill systems and pH control and monitoring systems.

Click on the image above to view in full size
